    MLT980G

    -+
    Q&A Buy It Now Focuses on
    Pay attention to the public number, menu purchase wholesale
    View count : Likenum int: Comment : Sold:

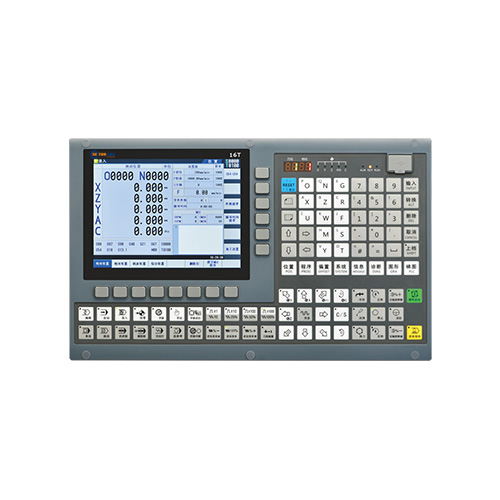

    MLT980G is the latest grinding machine for Topcon's self-controlled grinding machine, adapted to 3 axes, 4-axis grinding machine. MLT980G has superior performance, powerful, is the best choice for economical numerical controlled round grinding machine, inner round grinding machine, planar grinder supporting.


    Main technical features 8 "color LCD, new appearance design 14 separate soft function keys, easy to operate 4-axis control (including CS axis), minimum unit 0.001MM grinding wheel automatic repair support terminal surface meter, radius meter Control support interface configuration supports teaching programming unlimited time-time shutdown capabilities, easy to achieve free adaptable absolute, incremental servo drive, main technical specifications


    Urban

    MLT980G

    LCD

    8LCD

    Control

    Maximum number of control axes: 4 axis

    Linkage axes: 4 axis (straight), x, z-axis (arc interpolation)

    Position command

    Workpiece coordinate system (G50), partial coordinate system (52)

    Absolute / incremental programming, diameter / radius programming, English / metric conversion, straight axis / swivel shaft

    Directive range: ± 99999999 × minimum instruction unit

    Feed function

    Rapid moving speed: 0 mm / min ~ 30000 mm / min

    Grinding feed speed: 0 mm / min ~ 15000 mm / min

    Rapid mobile / grinding into acceleration / deceleration: linear, acceleration or deceleration start speed, termination speed, and acceleration time by parameter setting

    Head frame function

    Head frame speed: can be given by S code or PLC signal, speed range 0 rpm ~ 9999 rpm

    2 road 0V ~ 10V analog voltage output

    1 channel encoder feedback, the number of encoder lines can be set

    Tool function

    Tool length compensation (tool offset): 40 groups; tool wear compensation: 40 groups

    Knife tip radius compensation (C)

    Tutao method: fixed-point counter knife, try to cut the knife, return to the knife, automatic knife, coordinate recording function

    Security function

    Emergency stop, hardware stroke limit, software stroke check, data backup and recovery

    Electrical Interface

    4 control axes, 36 input / 39 output, 2 analog voltage output, 1 channel encoder input, 1 channel electronic handwheel input, 1 way RS232, 1 USB

    Dimensions

    420 × 260 × 80 (width × height × deep, unit: mm)

    Adaptive servo

    Adaptable absolute or incremental servo drive
