    5-Axis Medium Module Gear Hobbing Machine 5-Axis Medium Module Gear Hobbing Machine

    -+
    Q&A Buy It Now Focuses on
    Pay attention to the public number, menu purchase wholesale
    View count : Likenum int: Comment : Sold:

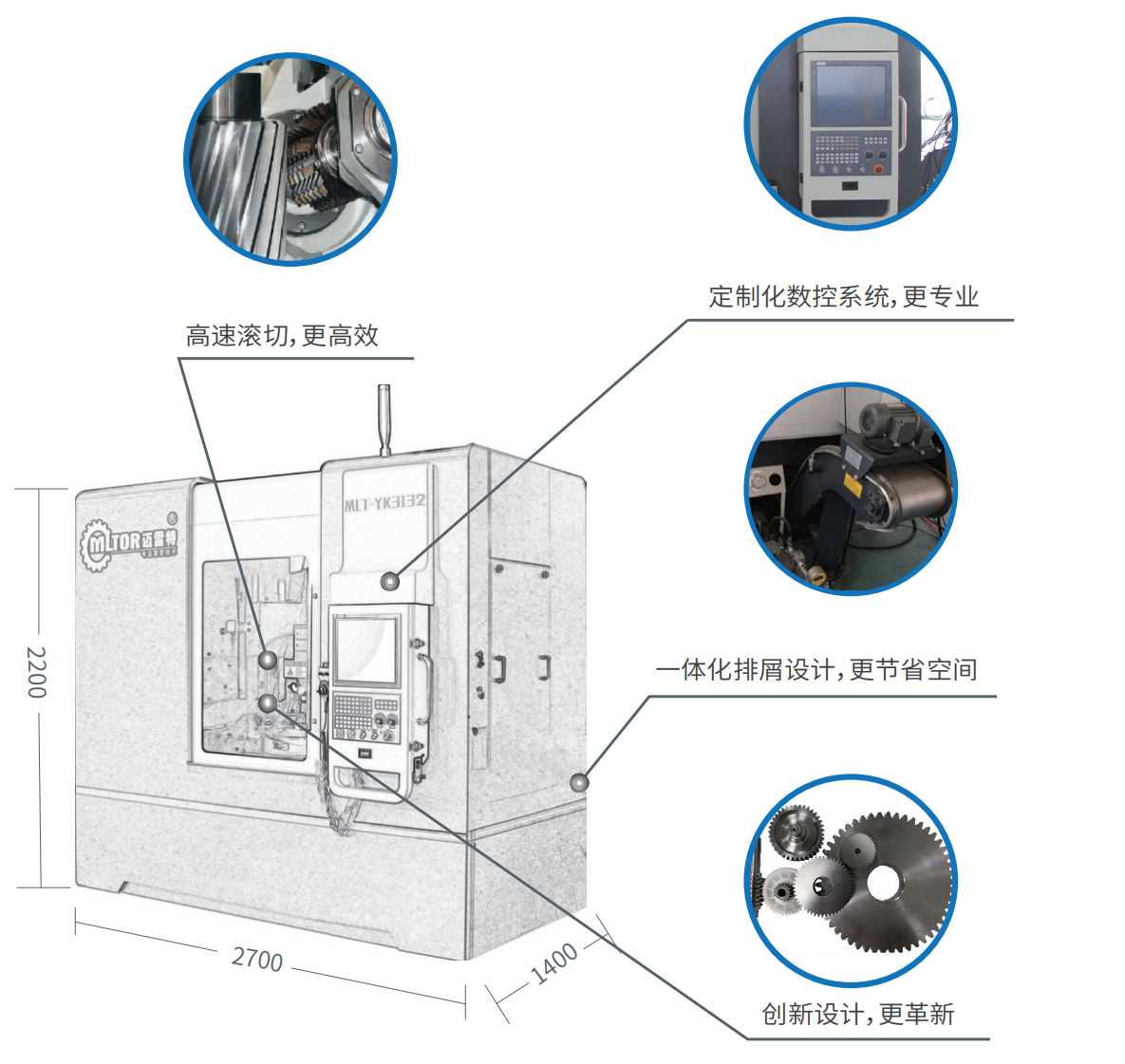

    1.Integrated chip conveyor design to save space



    2.Process cylindrical, helical and small taper drum gears, which can easily realize 45 angle tooth profile processing



    3.High speed directly driven servo motor equips with B and C axis, increase machining precision and machining efficiency a lot



    4.Main casting of machine bed and column are made of Mehana high-strength structure and equipped with rectangular large-surface plastic-coated lead rail.The structure is compact, dynamic and static



    5.Machines driven chain is short to ensure precision, which can reach grade 7



    6.Spindle adopts high-power servo motor, which can realize constant torque stepless speed change within the rated speed range.


    Specifications

    Description


    Parameter

    Unit

    Processing Capacity

    Coordinate Axis Number

    MLT-YK3132

    4/5

    axial

    Gear Type

    spur gear,helical gear, worm wheel, spline

    Precision

    Mass Production Grade 7, Finishing Production Grade 6(GB/T10095-2008)

    Workpiece

    Max. Dia

    320

    mm

    Max. Cylindrical Helical Gear Dia



    300helical angle 30°

    250helical angle 45°



    mm

    Module Range

    0.5~4

    mm

    Max. Face Width

    150

    mm

    Teeth Range

    ≥10

    teeth

    Tool

    Max. Rotating speed

    1500

    r/min

    Max. Tool Length

    80

    mm

    Max. Tool Dia

    120

    mm

    Tool Arbor Dia

    20,27,32

    mm

    Tool Position Accuracy

    ≤10

    Μm

    Hob Shifting

    manual/automatic


    Hob Shifting Travel

    100

    mm

    Spindle

    Z-Slide Travel

    210

    mm

    Hob Head Swivel Angle

    ±45

    °

    Turntable

    Turntable Dia

    500

    mm

    Turntable Max. RPM

    300

    r/min

    Power

    Hob Motor Power

    17

    KW

    Turntable Motor Power

    6.5

    KW

    Total Power

    30

    KW

    Size  Weight

    Floor Space(L*W*H)

    2700*1400*2300

    mm

    Machine Weight

    5100

    Kg
