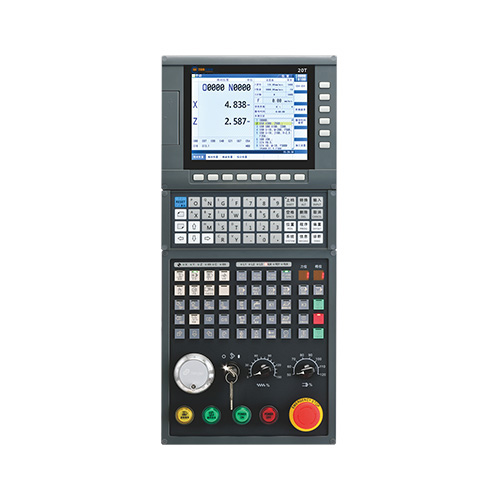

    MLT21T

    -+
    Q&A Buy It Now Focuses on
    Pay attention to the public number, menu purchase wholesale
    View count : Likenum int: Comment : Sold:

    MLT21T is based on the MeChatrolink-II bus, the maximum number of control axes is 6, and the maximum spindle is 3. Support servo parameters online configuration, servo status online monitoring. Hands with trajectory preview, teaching programming, graphic auxiliary programming, support multi-spindle control, can achieve machining functions such as polygonal wheeled and car milling composite. It can meet the control requirements of the diagonal machine control machine tool and the turning center.



    Main technical characteristics

    Mechatrolink-II bus control
    Servo online configuration and monitoring
    Two-way pitch error compensation
    Tool life management
    Automatic chip control
    Support configuration interface
    Multi-spindle control, support for car milling composite processing
    Parallel PLC axis control
    Support for two-handed control
    With network interface, networking supports NC machine tools
    Separate machine tool operator panel


    主要技术规格

    project

    Specification

    Control form /

    MECHATROLINK-Ⅱ,Spindle support pulse interface control

    Control axes

    Number of control axes: 6 axis

    Linkage axes: 6 axis (linear interpolation), 2 axis (arc interpolation)

    Minimum instruction

    0.001mm/0.001°(IS-B)

    0.0001mm/0.0001°(IS-C)

    Maximum fast-moving speed

    μ (IS-B) 60000 mm / min

    0.1μ (IS-C) 24000 mm / min

    Maximum cutting speed

    μ (IS-B) 30000 mm / min

    0.1μ (IS-C) 24000 mm / min


    Basic IO

    32/32

    Cylindrical interpolation

    yes

    Polar coordinate interpolation

    yes

    Polygonal wheel

    yes

    Automatic tool offset

    yes


    Panel structure

    Separate panel

    Dimensions (width × height × Deep, unit: mm)

    Horizontal

    Host: 400 × 200 × 100

    Machine Operator Panel: 400 × 200 × 80

    Vertical

    Host: 260 × 290 × 100

    Machine Operator Panel: 260 × 290 × 80
