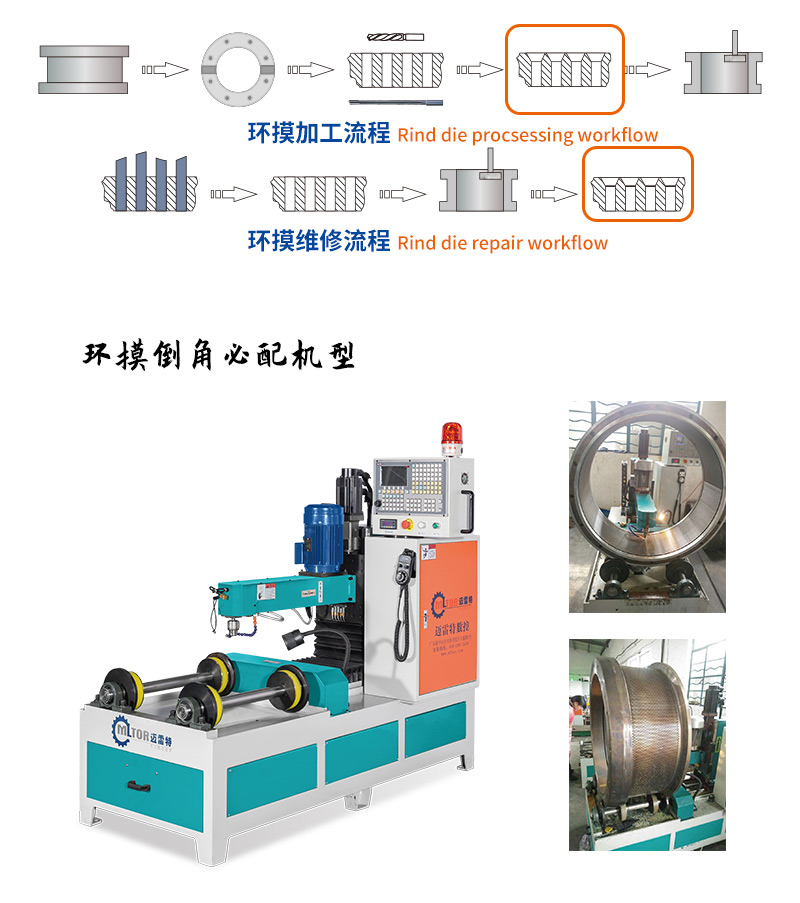

    MLT-DJ370F/W、MLT-DJ550F/W

    -+
    Q&A Buy It Now Focuses on
    Pay attention to the public number, menu purchase wholesale
    View count : Likenum int: Comment : Sold:

    规格参数



    加工能力 Processing   specification MLT-DJ370F/W MLT-DJ550F/W
    前后行程Before and after the trip 380mm 560mm
    Z轴行程Axis Z travel range 270mm 330mm
    倒角范围Chamfering range 1.2-6mm 3-12mm 1.2-6mm 3-12mm
    环模内径加工下限Ring-die size  Φ 350mm Φ 450mm
    环模外径加工上限Ring-die size  Φ 900mm Φ 1100mm
    环模厚度The thickness of the   ring-die ≤370mm  ≤550mm
    定位精度Positioning accuracy  0.02mm 0.02mm
    主轴转速(无极调速)Spindle speed  0~3000RPM/1500RPM 0~3000RPM/1500RPM
    主轴功率Spindle power 2.2kW 2.2kW
    控制界面The control interface 中文/English 中文/English
    基本尺寸及重量 Size and weight

    主机尺寸 Floor space (长L ×宽W ×高H   )  1750×900×1700 mm 2200×900×1700mm
    主机重量Host weight ≈900kg ≈1000kg
